EN/IEC 60332-1 Low Voltage Electrical Wire , Copper LV Power Cable
Low Voltage Electrical Wire Application
Low Voltage Electrical Wire Can be used in underground installations since the cable is very suitable for mechanical compulsion and harsh operating conditions. Suitable for comparatively high ambient tempera
Low Voltage Electrical WireStandards
The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.
Low Voltage Electrical Wire Construction
Conductor
Class 2 stranded aluminium conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
PVC (Polyvinyl Chloride)
Armour
Galvanized round steel wire
Sheath
PVC (Polyvinyl Chloride)
Low Voltage Electrical Wire Characteristics
Voltage Rating (Uo/U)
600/1000V
Test Voltage
3.5kV
Minimum Bending Radius
15 x overall diameter
Maximum Operating Temperature
+90°C
Maximum Short Circuit Temperature
+250°C
Sheath Colour
Black
The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.
Size, Weight & Electrical Specification
Product Tags:
|
|

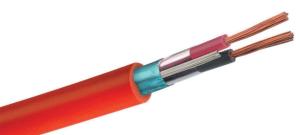

EN/IEC 60332-1 Low Voltage Electrical Wire , Copper LV Power Cable Images
|
