Underground Aluminium Low Voltage Power Cable Chemical / Oil Resistance
This Aluminuim cable POWERHARD RV AL U-1000 AR2V is suitable for all types of underground networks for public power distribution, as well as low voltage connexions in industrial plants, urban networks, buildings, etc. Due to its rigidity, its use is recommended in installations with a simple configuration where a flexible cable is not needed.
POWERHARD RV AL U-1000 AR2V cable performance
Electrical performance
LOW VOLTAGE 0,6/1kV
Standard
UNE-HD 603-5N / NF C 32-321
Approvals
CE
NF-USE
AENOR
RoHS
Construction Product Regulation
Eca
Thermal performance
Maximum service temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Fire performance
Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.
Reduced emission of halogens. Chlorine <15%.
Mechanical performance
Minimum bending radius: x 5 cable diameter.
Impact resistance: AG2 Medium severity.
Chemical performance
Chemical & Oil resistance: Good.
UV Resistant: UNE 211605 and NF-C 32-323.
Water performance
Water resistance: AD7 Immersion.
Other
Meter by meter marking.
Installation conditions
Open Air.
Buried.
In conduit.
Applications
Industrial use.
Distribution network.
POWERHARD RV AL U-1000 AR2V cable design
Conductor
Aluminium, class 2 based on EN 60228 and IEC 60228.
Insulation
Cross-linked polyethylene (XLPE)
Outer sheath
Flexible PVC, Black or grey colour.

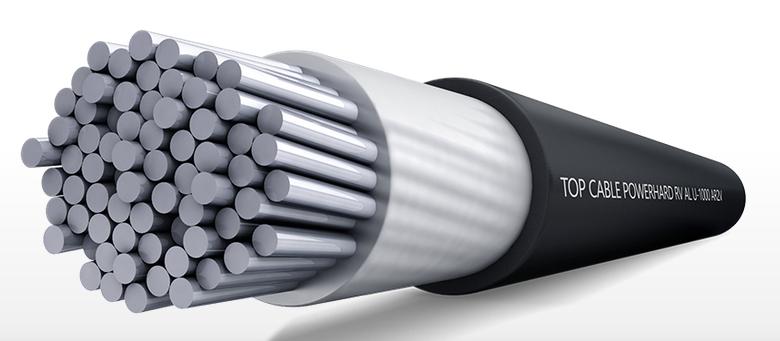

Technology
1. Conductor
Aluminium, class 2 based on EN 60228 and IEC 60228.
2. Insulation
Cross-linked polyethylene (XLPE)
3. Outer sheath
Flexible PVC, Black or grey colour.
