Name: Medium Voltage Power Cables Xlpe Armoured Cable PE Coated Aluminium Tape
Brand: SUNWIN
Price: 1 USD

Name : Medium Voltage cables

 Rated voltage : 6/10 kV; 12/20 kV; 18/30 kV; 20,8/36 kV. 

Cable standard : DIN VDE 0267-620. 

Operating temperature, short circuit : 250° C.

Max. conductor temperature in service : 90° C. 

Halogen free : EN 60332-1. 

Place of Origin : Guangzhou, China

Brand Name : SUNWIN

Certification : ISO9001, ISO14001, OHSAS18001

MOQ : Negotiable

Price : Negotiable

Packaging Details : 100 m / tied, or customized

Delivery Time : 10 day

Payment Terms : 30% deposit, the balance is settled on the delivery date

Supply Ability : 100,000 m / month

Contact Now

Medium Voltage Power Cables Xlpe Armoured Cable PE Coated Aluminium Tape

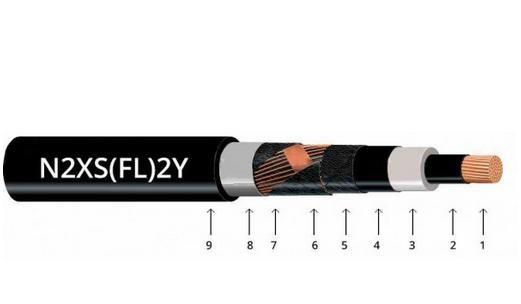

N2XS(FL)2Y  medium voltage copper power cable - Construction

 1. Stranded bare copper.

2. Inner semi-conductive layer.

3. XLPE insulation (cross-linked polyethylene).

4. Outer semi-conductive layer.

5. Semi-conductive swellable tape.

6. Copper wire screen.

7. Swellable tape ensuring longitudinal and radial water seal.

8. PE coated aluminium tape.

9. PE outer jacket.

N2XS(FL)2Y medium voltage copper power cable - Technical data and tests

Rated voltage : 6/10 kV; 12/20 kV; 18/30 kV; 20,8/36 kV.

Cable standard : DIN VDE 0267-620.

Operating temperature, short circuit : 250° C.

Max. conductor temperature in service : 90° C.

Minimum installation temperature : -20° C.

Halogen free : EN 60332-1.
Lead free.

UV stability.
