Higly Flexible Halogen Free Solar Pv Wire H1Z2Z2 K Photovoltaic Cable

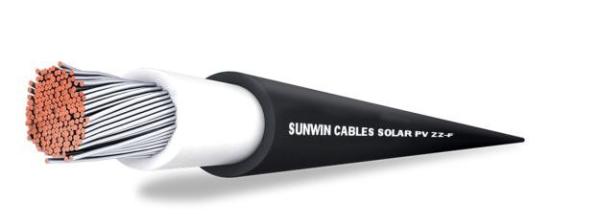

SOLAR PV ZZ-F Dual cable is both TÜV and UL certified, as requested by the leading global manufacturers of photovoltaic panels and junction boxes. This cable is specially designed for the connection of photovoltaic panels, meeting the varying needs of the solar industry. Higly flexible cable, compatible with all major connectors. Suitable for wet, damp and humid locations.
SOLAR PV ZZ-F DUAL cable performance
Electrical performance
LOW VOLTAGE 1,5/1,5 1kV · (1,8) kV · UL 2000 V
Standard
UL PV WIRE / UL USE-2 / EN 50618 / TÜV 2Pfg 1169-08 / UTE C 32-502
Approvals
CE
UL LISTED
TÜV
EN
RoHS
Thermal performance
Maximum service temperature: 120ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC.
Fire performance
Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.
LSZH (Low Smoke Zero Halogen) based on UNE-EN 60754-1 and IEC 60754-1.
Low smoke emission based on UNE-EN 61034 and IEC 61034: Light transmittance > 60%
Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2.
Mechanical performance
Minimum bending radius: x3 cable diameter.
Impact resistance: AG2 Medium severity.
Chemical performance
Chemical & Oil resistance: Excellent.
Grease & mineral oils resistance: Excellent.
UV Resistant
UV Resistant based on EN 50618, TÜV 2Pfg 1169-08 and UL 2556.
Water performance
Water presence: AD8 submerged.
Estimated Lifetime
Estimated lifetime 30 years based on UNE-EN 60216-2.
Other
Meter by meter marking.
Installation conditions
Open Air.
Buried.
Applications
Solar PV installations.
SOLAR PV ZZ-F DUAL cable design
Conductor
Class 5 (flexible) tinned copper, based on EN 60228 and IEC 60228.
Insulation
Low smoke zero halogen (LSZH) rubber (XLEVA type according to UL / E16 according to TÜV).
Outer sheath
Low smoke zero halogen (LSZH) rubber (XLEVA type according to UL / E16 according to TÜV). Black colour.
DIMENSIONS
| Cross section (mm2) | Diame- ter (mm) | Weight (Kg/km) | Open Air (A) | Inst. on surface (A) | Inst. adjoining to surface (A) | Voltage drop (V/A · km) |
| 1 x 4 (12 AWG) | 7,1 | 83 | 55 | 52 | 44 | 14,3 |
| 1 x 6 (10 AWG) | 7,7 | 104 | 70 | 67 | 57 | 9,49 |
| 1 x 10 (8 AWG) | 9,1 | 159 | 98 | 93 | 79 | 5,46 |
| 1 x 16 (6 AWG) | 10,1 | 218 | 132 | 125 | 107 | 3,47 |
| 1 x 25 (4 AWG) | 11,5 | 309 | 176 | 167 | 142 | 2,23 |
| 1 x 35 (2 AWG) | 12,6 | 404 | 218 | 207 | 176 | 1,58 |
