NYY,NYY-J,NYY-O,Low Voltage Copper PVC Insulation PVC sheath Power Cable (0.6/1KV)]
NYY,NYY-J,NYY-O (Low Voltage Copper PVC Insulation PVC sheath Power Cable (0.6/1KV)) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
Application :
Kabel NYY is used as a power cable for energy supply in static installations, indoors, outdoors, underground, in concrete and in water where mechanical damages are not to be expected. The use of NYY cables is in accordance with VDE 0298 part 1. The current capacity is according to HD 603 S.1 and VDE 0276 part 1000. The product conforms to EEC directive 73/23 (Low Voltage Directive). CE certificated type cables.

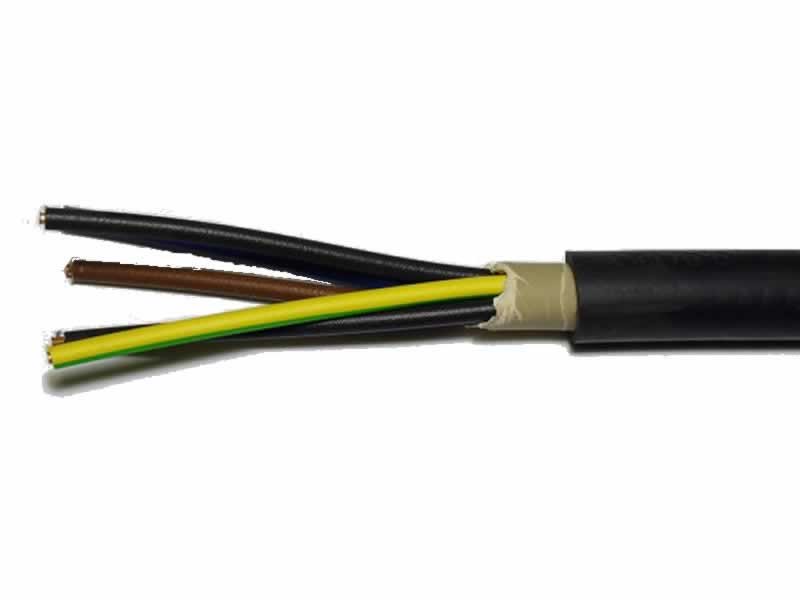

NYY cable Construction:
| Conductor: | Bare Copper wire conductor
Re: circular solid, single core
Rm: circular stranded, multi wire
Sm: sectorial stranded, |
| Insulation: | PVC |
| Bedding: | PVC |
| Sheath: | PVC sheath, black |
| Cores: | Colour coded to VDE0293 |
| Voltage Rating: | 0.6/1kV |
| Bending Radius for Single Core: | Minimum: | 15 x Ø |
| Bending Radius for Multi Core: | Minimum: | 12 x Ø |
O = No protective earth – NYY-O
Single core: Black
Two core: Brown and Blue |
J = green/yellow protective earth – NYY-J
Three core: Brown, Blue and Green / Yellow
Four core: Black, Grey, Brown and Green / Yellow
Five core: Black, Blue. Brown, Grey and Green / Yellow
Seven – Forty cores: Black cores, numbered and Green / Yellow |
Specification Sheet of NYY Kablo:
| Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| NYY-J cable |
| 1 x 25rm | 13.0 | 240.0 | 380 |
| 1 x 35rm | 14.0 | 336.0 | 447 |
| 1 x 50rm | 15.0 | 480.0 | 650 |
| 1 x 70rm | 17.0 | 672.0 | 864 |
| 1 x 185rm | 25.0 | 1776.0 | 2080 |
| 3 x 1,5re | 12.0 | 43.0 | 223 |
| 4 x 1,5re | 13.0 | 58.0 | 256 |
| 5 x 1,5re | 14.0 | 72.0 | 293 |
| 7 x 1,5re | 15.0 | 101.0 | 360 |
| 10 x 1,5re | 18.0 | 144.0 | 520 |
| 12 x 1,5re | 19.0 | 173.0 | 560 |
| 14 x 1,5re | 20.0 | 202.0 | 620 |
| 16 x 1,5re | 21.0 | 230.0 | 680 |
| 19 x 1,5re | 22.0 | 274.0 | 760 |
| 24 x 1,5re | 24.0 | 346.0 | 900 |
| 30 x 1,5re | 26.0 | 432.0 | 1100 |
| 3 x 2,5re | 13.0 | 72.0 | 272 |
| 4 x 2,5re | 14.0 | 96.0 | 316 |
| 5 x 2,5re | 15.0 | 120.0 | 323 |
| 7 x 2,5re | 16.0 | 168.0 | 450 |
| 10 x 2,5re | 20.0 | 240.0 | 630 |
| 12 x 2,5re | 20.0 | 288.0 | 680 |
| 14 x 2,5re | 21.0 | 336.0 | 790 |
| 19 x 2,5re | 23.0 | 456.0 | 990 |
| 24 x 2,5re | 26.0 | 576.0 | 1300 |
| 30 x 2,5re | 28.0 | 720.0 | 1400 |
| 3 x 4re | 15.0 | 115.0 | 373 |
| 4 x 4re | 16.0 | 154.0 | 439 |
| 5 x 4re | 17.0 | 192.0 | 510 |
| 3 x 6re | 16.0 | 173.0 | 466 |
| 4 x 6re | 17.0 | 230.0 | 547 |
| 5 x 6re | 19.0 | 288.0 | 640 |
| 3 x 10re | 18.0 | 288.0 | 629 |
| 4 x 10re | 19.0 | 384.0 | 743 |
| 5 x 10re | 21.0 | 480.0 | 899 |
| 3 x 16re | 20.0 | 461.0 | 850 |
| 4 x 16re | 22.0 | 614.0 | 1039 |
| 5 x 16re | 23.0 | 768.0 | 1240 |
| 3 x 25rm/16re | 25.0 | 874.0 | 1595 |
| 4 x 25rm | 27.0 | 960.0 | 1620 |
| 3 x 35sm/16re | 27.0 | 1162.0 | 1718 |
| 4 x 35sm | 27.0 | 1344.0 | 1916 |
| 3 x 50sm/25rm | 31.0 | 1680.0 | 2383 |
| 4 x 50sm | 31.0 | 1920.0 | 2639 |
| 3 x 70sm/35sm | 33.0 | 2352.0 | 3196 |
| 4 x 70sm | 35.0 | 2688.0 | 3576 |
| 3 x 95sm/50sm | 38.0 | 3216.0 | 4271 |
| 4 x 95sm | 40.0 | 3648.0 | 4746 |
| 3 x 120sm/70sm | 41.0 | 4128.0 | 5281 |
| 4 x 120sm | 43.0 | 4608.0 | 5813 |
| 3 x 150sm/70sm | 46.0 | 4992.0 | 6408 |
| 4 x 150sm | 48.0 | 5760.0 | 7263 |
| 3 x 185sm/95sm | 50.0 | 6240.0 | 7909 |
| 4 x 185sm | 53.0 | 7104.0 | 8905 |
| 3 x 240sm/120sm | 57.0 | 8064.0 | 10162 |
| 4 x 240sm | 60.0 | 9216.0 | 11430 |
| NYY-O cable |
| 1 x 10re | 10.0 | 96.0 | 176 |
| 1 x 16re | 11.0 | 154.0 | 239 |
| 1 x 25rm | 13.0 | 240.0 | 380 |
| 1 x 35rm | 14.0 | 336.0 | 447 |
| 1 x 50rm | 15.0 | 480.0 | 650 |
| 1 x 70rm | 17.0 | 672.0 | 864 |
| 1 x 95rm | 19.0 | 912.0 | 1132 |
| 1 x 120rm | 21.0 | 1152.0 | 1405 |
| 1 x 150rm | 22.0 | 1440.0 | 1710 |
| 1 x 185rm | 25.0 | 1776.0 | 2080 |
| 1 x 240rm | 27.0 | 2304.0 | 2669 |
| 1 x 300rm | 30.0 | 2880.0 | 3305 |
| 1 x 500rm | 39.0 | 4800.0 | 5400 |
| 2 x 1,5re | 11.0 | 29.0 | 210 |
| 2 x 2,5re | 12.0 | 48.0 | 250 |
| 2 x 4re | 14.0 | 77.0 | 360 |
| 2 x 6re | 15.0 | 115.0 | 400 |
| 2 x 10re | 17.0 | 192.0 | 500 |
| 4 x 16re | 22.0 | 614.0 | 1039 |
| 4 x 25rm | 27.0 | 960.0 | 1620 |
| 4 x 50sm | 31.0 | 1920.0 | 2639 |
| 4 x 70sm | 35.0 | 2688.0 | 3576 |
| 4 x 95sm | 40.0 | 3648.0 | 4746 |
Remark :
1)Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon request.
2)Please specify the preferred type of packaging (e.g. 1 x 500 m drum or 5 x 100 m coils).
Low Voltage Copper PVC Insulation PVC sheath Power Cable (0.6/1KV),NYY,NYY-J,NYY-O specifications(data sheet,table,full form)
