Smoke Emissions Overhead Power Lines For Solar Panel Arrays Customized Size
Overhead Power Lines Application
Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems, but not direct burial applications. Our solar cable is ozone-resistant according to BS EN 50396, UV resistant according to HD 605/A1, and is tested for durability according to EN 60216. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.
Overhead Power Lines Standards
The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.
Overhead Power Lines Construction

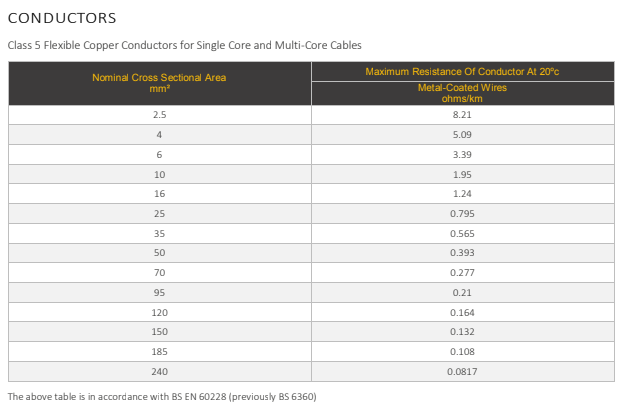

Conductor
Class 5 flexible tinned copper conductor
Insulation
Halogen-free cross-linked compound
Sheath
Halogen-free cross-linked, flame retardant compound
Characteristics
Voltage Rating (Uo/U)
AC: 600/1000V
DC: 900/1800V
Temperature Rating
Fixed: -40°C to +90°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
Maximum Voltage (Umax)
1.8kV DC (conductor/conductor, non earthed system, circuit not under load)
Maximum Conductor Temperature
+120°C (for 20000h)
Test Voltage
6.5kV AC according to BS EN 50395
Sheath Colour
Black
Note
Other colours available on request
Size, Weight & Electrical Specification
